IFE American Style Hose Clamps, 8mm (0.31") Band, W4 Stainless Steel – Carton Pack$521.40 – $643.50
4.9/5 Reviews
Same Day Ship
Best Pricing
Pro Trusted
Subscribe to our Mailing List
Get the latest updates on new products and upcoming sales
Get the latest updates on new products and upcoming sales
SKU: HCSS-10-W5
SKU: HCSS-10-W5

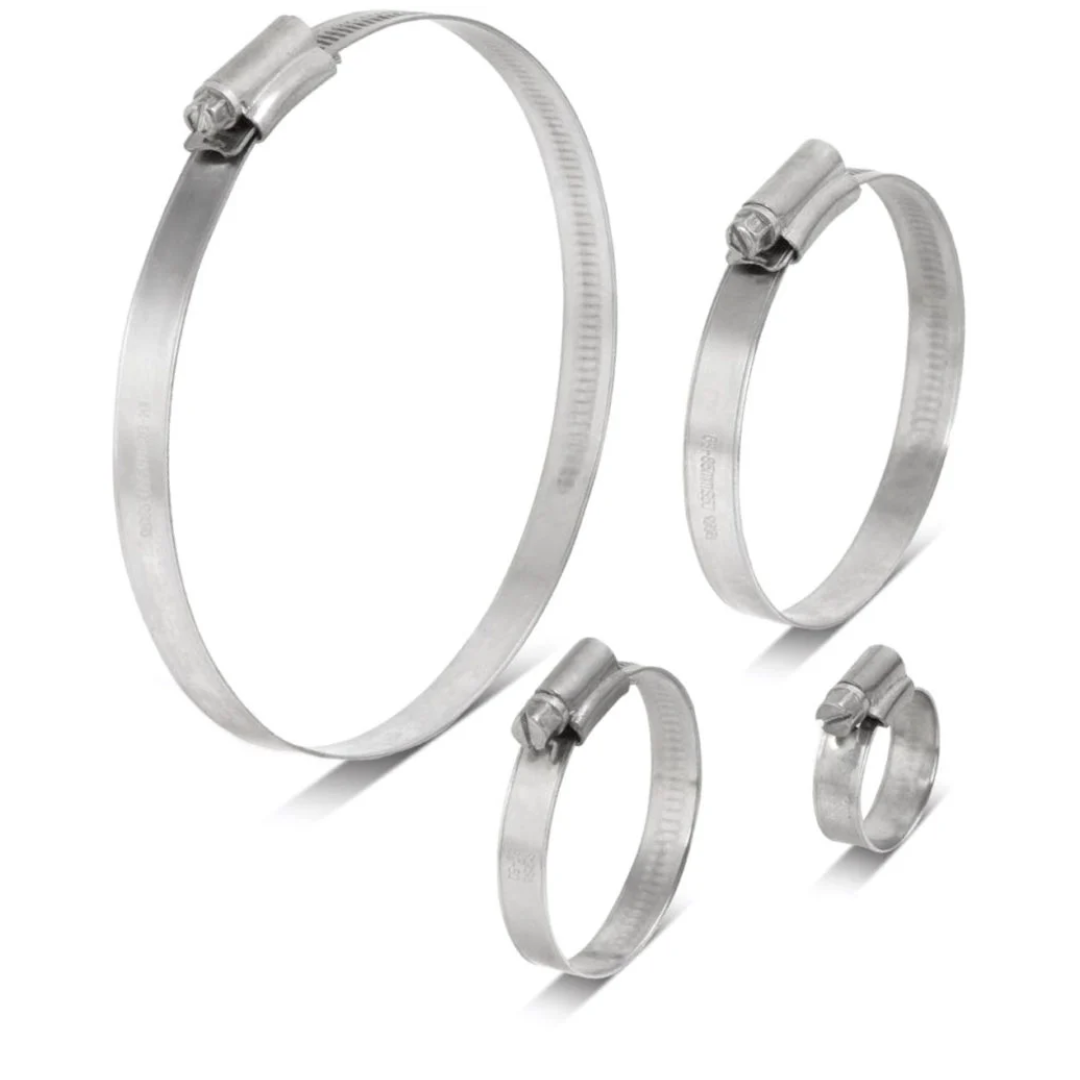

For critical applications where performance and reliability are non-negotiable, IFE’s Swedish-style worm drive clamps are the trusted choice. Known for their superior strength and long service life, these premium clamps are used worldwide—both on land and at sea—by professionals who demand the highest quality.
Key Features:
One-piece, non-welded tubular housing for maximum strength
Smooth inner diameter minimizes hose damage and ensures efficient torque-to-clamp conversion
Rolled edges protect against hose abrasion
Preferred by leading yacht manufacturers across North America, Europe, and Asia
Specifications:
Made from AISI 316 stainless steel (band, housing, and screw) for corrosion resistance in marine environments
Available in 10 mm and 12 mm bandwidths with 7 mm screw head
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCSS-10-814-W5 | 8-14 | 0.31"-0.55" | 10 | 7 | 1250 | 35 |
| HCSS-10-1117-W5 | 11-17 | 0.43"-0.67" | 10 | 7 | 1250 | 35 |
| HCSS-10-1320-W5 | 13-20 | 0.51"-0.79" | 10 | 7 | 1000 | 31 |
| HCSS-10-1524-W5 | 15-24 | 0.59"-0.94" | 10 | 7 | 1000 | 34 |
| HCSS-10-1928-W5 | 19-28 | 0.75"-1.1" | 10 | 7 | 1000 | 36 |
| HCSS-10-2232-W5 | 22-32 | 0.87"-1.26" | 10 | 7 | 500 | 22 |
| HCSS-10-2638-W5 | 26-38 | 1.02"-1.5" | 10 | 7 | 750 | 35 |
| HCSS-10-3244-W5 | 32-44 | 1.26"-1.73" | 10 | 7 | 500 | 26 |
| HCSS-10-3850-W5 | 38-50 | 1.5"-1.97" | 10 | 7 | 500 | 27 |
| HCSS-10-4456-W5 | 44-56 | 1.73"-2.2" | 10 | 7 | 250 | 18 |
| HCSS-10-5065-W5 | 50-65 | 1.97"-2.56" | 10 | 7 | 250 | 18 |
| HCSS-10-5875-W5 | 58-75 | 2.28"-2.95" | 10 | 7 | 100 | 18 |
| HCSS-10-6085-W5 | 60-85 | 2.36"-3.35" | 10 | 7 | 100 | 11 |
For critical applications where performance and reliability are non-negotiable, IFE’s Swedish-style worm drive clamps are the trusted choice. Known for their superior strength and long service life, these premium clamps are used worldwide—both on land and at sea—by professionals who demand the highest quality.
Key Features:
One-piece, non-welded tubular housing for maximum strength
Smooth inner diameter minimizes hose damage and ensures efficient torque-to-clamp conversion
Rolled edges protect against hose abrasion
Preferred by leading yacht manufacturers across North America, Europe, and Asia
Specifications:
Made from AISI 316 stainless steel (band, housing, and screw) for corrosion resistance in marine environments
Available in 10 mm and 12 mm bandwidths with 7 mm screw head
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCSS-10-814-W5 | 8-14 | 0.31"-0.55" | 10 | 7 | 1250 | 35 |
| HCSS-10-1117-W5 | 11-17 | 0.43"-0.67" | 10 | 7 | 1250 | 35 |
| HCSS-10-1320-W5 | 13-20 | 0.51"-0.79" | 10 | 7 | 1000 | 31 |
| HCSS-10-1524-W5 | 15-24 | 0.59"-0.94" | 10 | 7 | 1000 | 34 |
| HCSS-10-1928-W5 | 19-28 | 0.75"-1.1" | 10 | 7 | 1000 | 36 |
| HCSS-10-2232-W5 | 22-32 | 0.87"-1.26" | 10 | 7 | 500 | 22 |
| HCSS-10-2638-W5 | 26-38 | 1.02"-1.5" | 10 | 7 | 750 | 35 |
| HCSS-10-3244-W5 | 32-44 | 1.26"-1.73" | 10 | 7 | 500 | 26 |
| HCSS-10-3850-W5 | 38-50 | 1.5"-1.97" | 10 | 7 | 500 | 27 |
| HCSS-10-4456-W5 | 44-56 | 1.73"-2.2" | 10 | 7 | 250 | 18 |
| HCSS-10-5065-W5 | 50-65 | 1.97"-2.56" | 10 | 7 | 250 | 18 |
| HCSS-10-5875-W5 | 58-75 | 2.28"-2.95" | 10 | 7 | 100 | 18 |
| HCSS-10-6085-W5 | 60-85 | 2.36"-3.35" | 10 | 7 | 100 | 11 |
