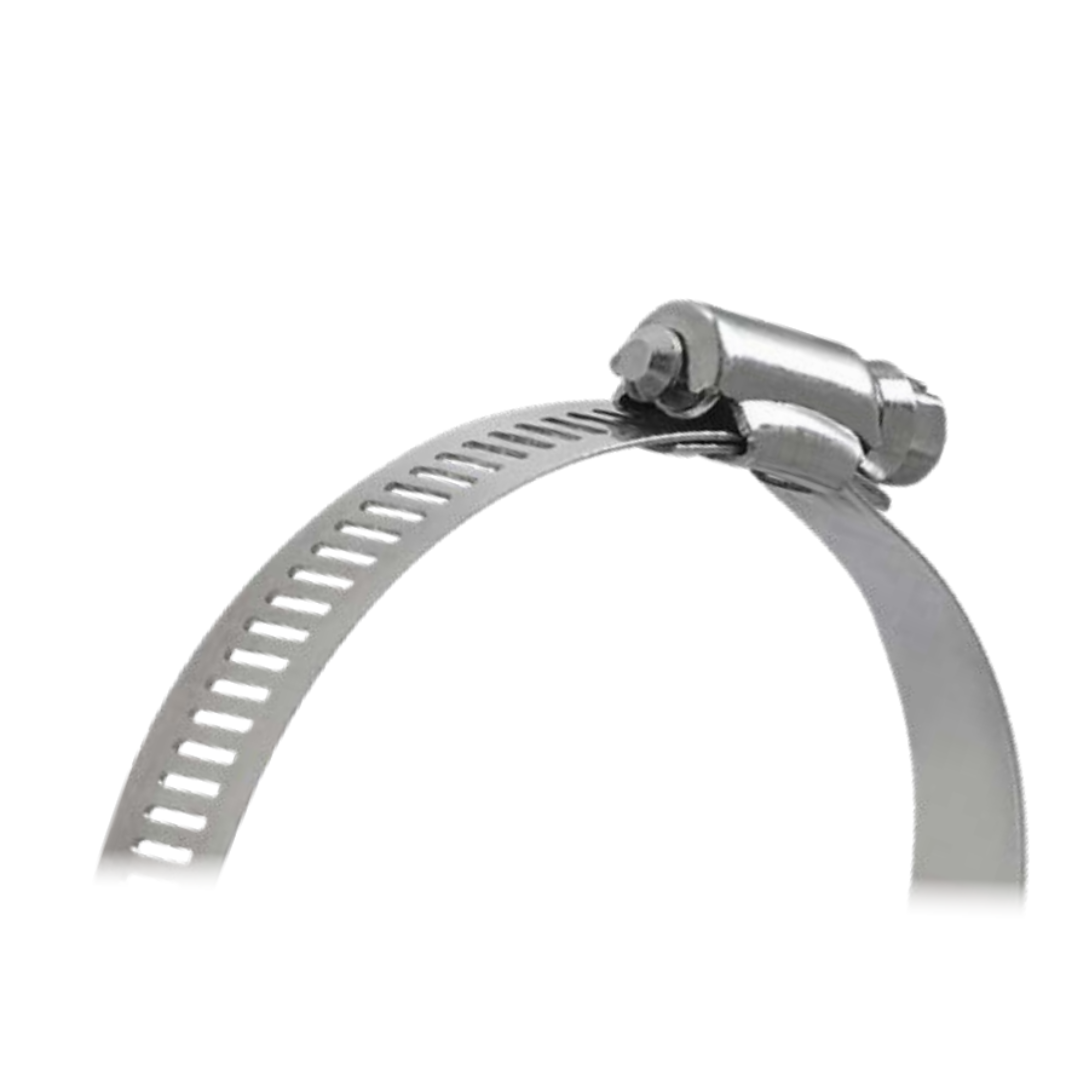

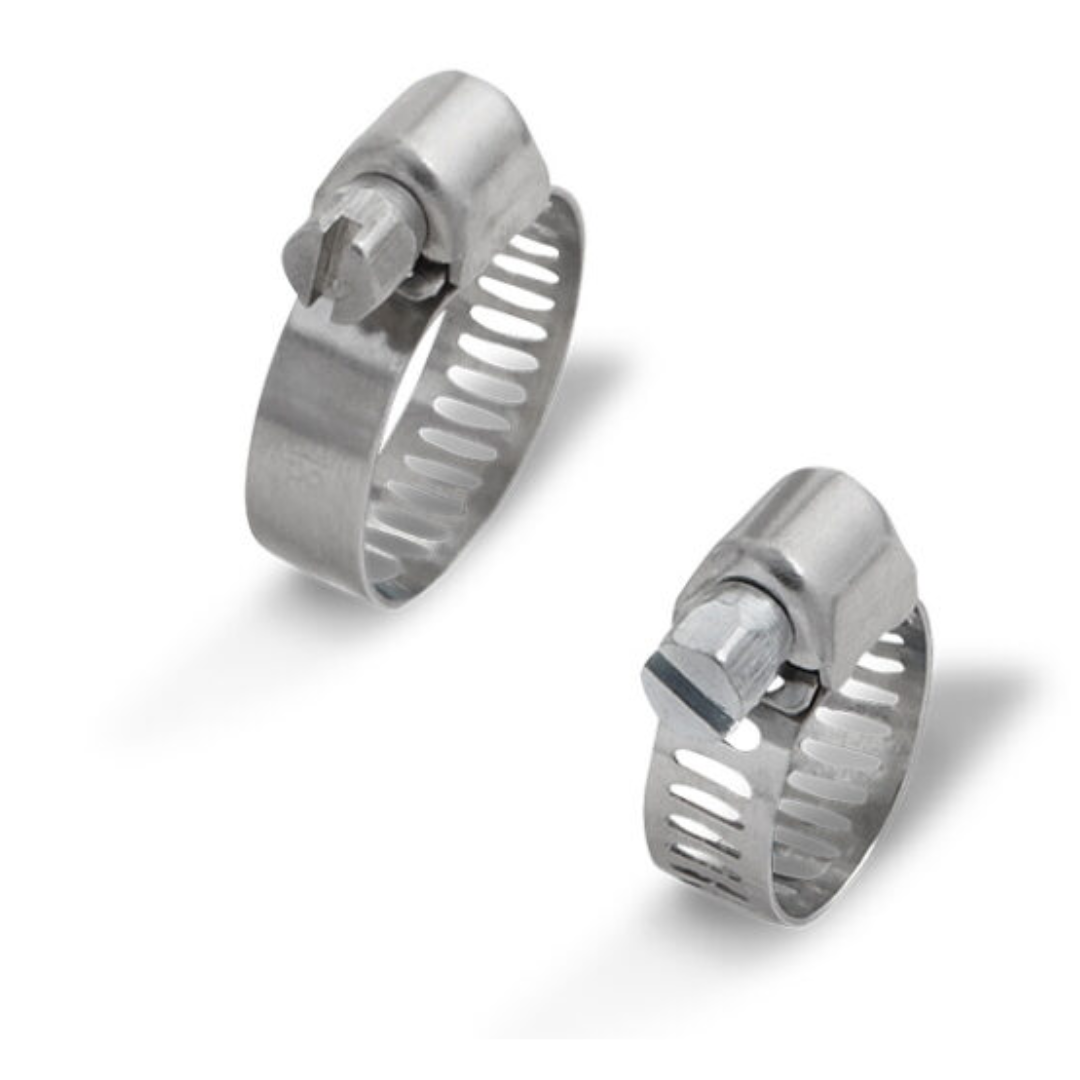

IFE American Style Clamps follow the classic hose clamp design, making them one of the most popular choices across America. Featuring an interlocked construction, these clamps deliver exceptional durability without requiring any welding.
-
A liner version is available, designed with an inner liner to protect hoses and delicate components from damage caused by the band slots.
-
Ideal for securely mounting signs, flags, small vessels, and filters.
-
Available in a 1/2" (12.7 mm) bandwidth with a 5/16" (8 mm) screw head.
-
Material: W4 (all 300 series stainless steel).
-
Clamps comply with SAE J1508 Type F hose clamp specifications.
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCAS-8-616-W4 | .6-16 | 0.24"-0.63" | 8 | 6 | 1250 | 21 |
| HCAS-8-818-W4 | .8-18 | 0.31"-0.71" | 8 | 6 | 1000 | 18 |
| HCAS-8-1120-W4 | .11-20 | 0.43"-0.79" | 8 | 6 | 1000 | 19 |
| HCAS-8-1323-W4 | 13-23 | 0.51"-0.91" | 8 | 6 | 1000 | 21 |
| HCAS-8-1427-W4 | 14-27 | 0.55"-1.06" | 8 | 6 | 1000 | 22 |
| HCAS-8-1338-W4 | 13-38 | 0.51"-1.5" | 8 | 6 | 1000 | 24 |
