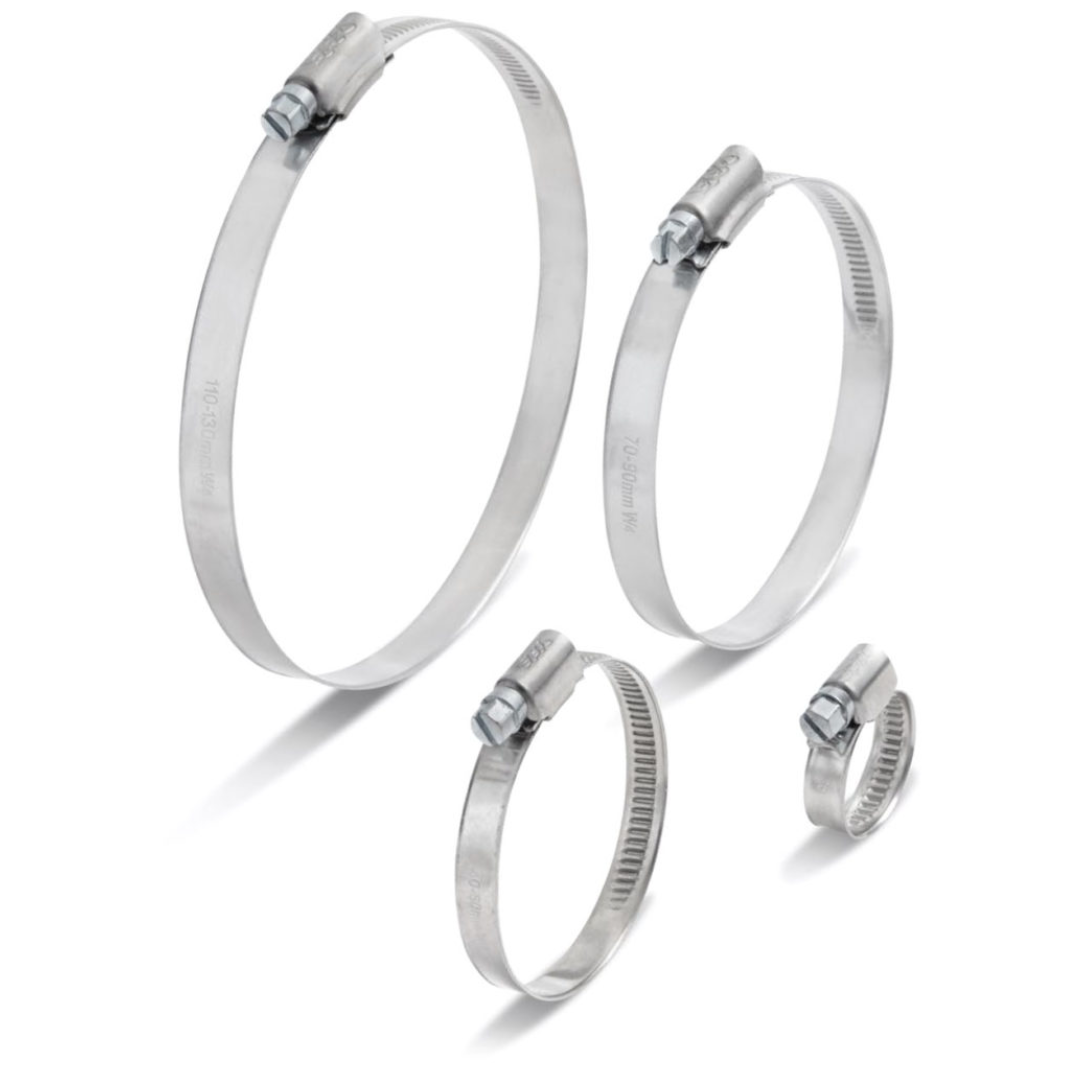

IFE American Style Hose Clamps, 8mm (0.31") Band, W4 Stainless Steel – Carton Pack$521.40 – $643.50
4.9/5 Reviews
Same Day Ship
Best Pricing
Pro Trusted
Subscribe to our Mailing List
Get the latest updates on new products and upcoming sales
Get the latest updates on new products and upcoming sales
SKU: HCGS-12-W4
SKU: HCGS-12-W4
High clamping force with reduced torque requirements
Rolled edges to reduce hose abrasion
Non-slotted band prevents hose extrusion
Excellent performance-to-price ratio
Specifications:
Available in 9 mm and 12 mm bandwidths with 7 mm screw heads
All IFE German style clamps meet SAE J1508 Type F hose clamp specifications.
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCGS-12-1625-W4 | 16-25 | 0.63"-0.98" | 12 | 7 | 500 | 21 |
| HCGS-12-1627-W4 | 16-27 | 0.63"-1.06" | 12 | 7 | 500 | 23 |
| HCGS-12-2032-W4 | 20-32 | 0.79"-1.26" | 12 | 7 | 750 | 36 |
| HCGS-12-2540-W4 | 25-40 | 0.98"-1.57" | 12 | 7 | 500 | 28 |
| HCGS-12-3045-W4 | 30-45 | 1.18"-1.77" | 12 | 7 | 500 | 30 |
| HCGS-12-3550-W4 | 35-50 | 1.38"-1.97" | 12 | 7 | 250 | 16 |
| HCGS-12-4060-W4 | 40-60 | 1.57"-2.36" | 12 | 7 | 250 | 19 |
| HCGS-12-5070-W4 | 50-70 | 1.97"-2.76" | 12 | 7 | 250 | 20 |
| HCGS-12-6080-W4 | 60-80 | 2.36"-3.15" | 12 | 7 | 100 | 11 |
| HCGS-12-7090-W4 | 70-90 | 2.76"-3.54" | 12 | 7 | 100 | 12 |
| HCGS-12-80100-W4 | 80-100 | 3.15"-3.94" | 12 | 7 | 100 | 13 |
| HCGS-12-90110-W4 | 90-110 | 3.54"-4.33" | 12 | 7 | 100 | 13 |
| HCGS-12-100120-W4 | 100-120 | 3.94"-4.72" | 12 | 7 | 100 | 13 |
| HCGS-12-110130-W4 | 110-130 | 4.33"-5.12" | 12 | 7 | 100 | 14 |
| HCGS-12-120140-W4 | 120-140 | 4.72"-5.51" | 12 | 7 | 100 | 14 |
| HCGS-12-130150-W4 | 130-150 | 5.12"-5.91" | 12 | 7 | 100 | 13 |
| HCGS-12-160180-W4 | 160-180 | 6.3"-7.09" | 12 | 7 | 100 | 14 |
| HCGS-12-200220-W4 | 200-220 | 7.87"-8.66" | 12 | 7 | 50 | 9 |
