Delivery Information: Please note that there is a 48 hour shipping time on this product.

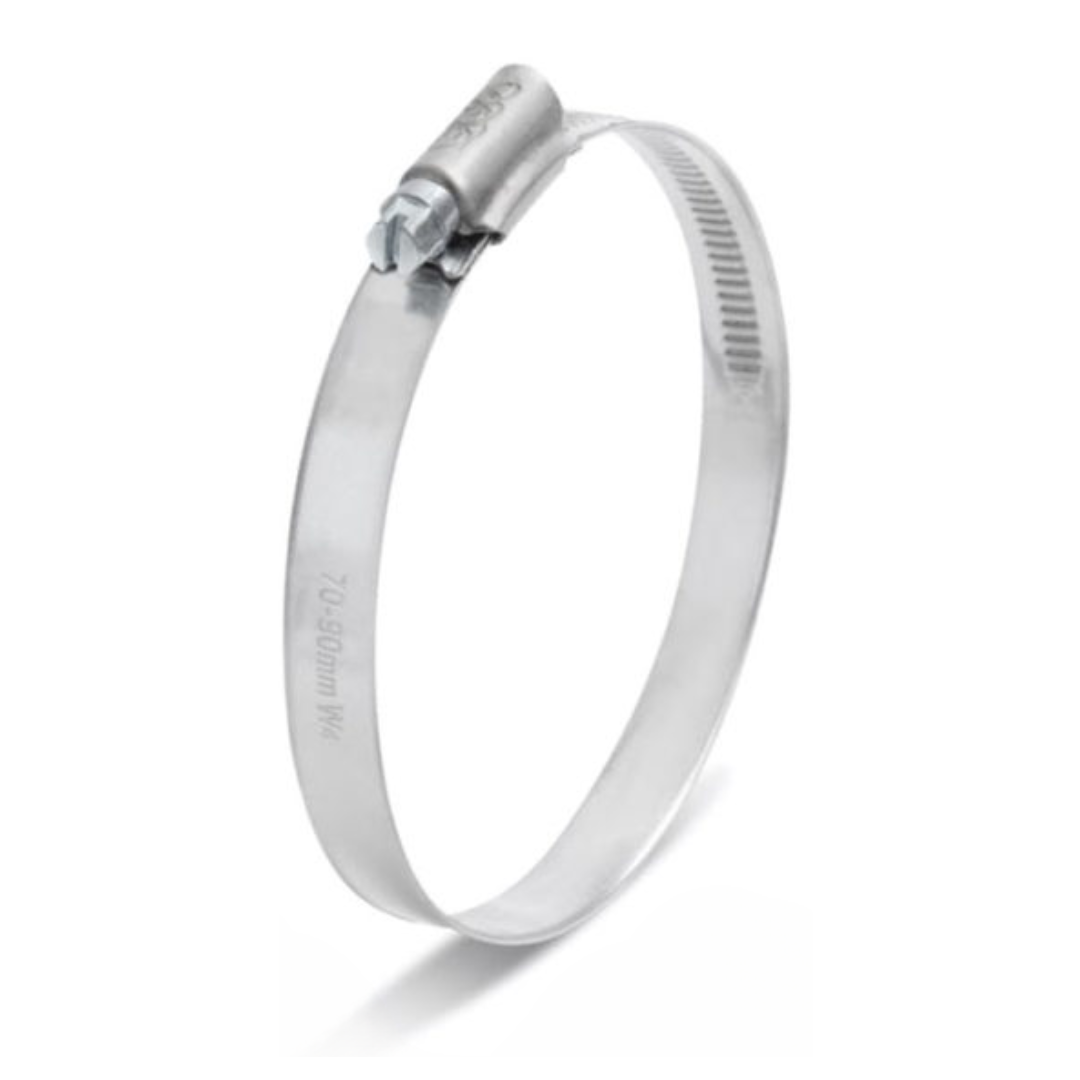

Key Features:
-
High clamping force with reduced torque requirements
-
Rolled edges to reduce hose abrasion
-
Non-slotted band prevents hose extrusion
-
Excellent performance-to-price ratio
Specifications:
-
Available in 9 mm and 12 mm bandwidths with 7 mm screw heads
-
All IFE German style clamps meet SAE J1508 Type F hose clamp specifications.
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCGS-9-816-W4 | .8-16 | 0.31"-0.63" | 9 | 7 | 1250 | 21 |
| HCGS-9-1220-W4 | .12-20 | 0.47"-0.79" | 9 | 7 | 1000 | 30 |
| HCGS-9-1222-W4 | .12-22 | 0.47"-0.87" | 9 | 7 | 500 | 16 |
| HCGS-9-1625-W4 | 16-25 | 0.63"-0.98" | 9 | 7 | 1000 | 25 |
| HCGS-9-1627-W4 | 16-27 | 0.63"-1.06" | 9 | 7 | 500 | 16 |
| HCGS-9-2032-W4 | 20-32 | 0.79"-1.26" | 9 | 7 | 500 | 19 |
| HCGS-9-2335-W4 | 23-35 | 0.91"-1.38" | 9 | 7 | 500 | 22 |
| HCGS-9-2540-W4 | 25-40 | 0.98"-1.57" | 9 | 7 | 500 | 22 |
| HCGS-9-3045-W4 | 30-45 | 1.18"-1.77" | 9 | 7 | 500 | 22 |
| HCGS-9-3550-W4 | 35-50 | 1.38"-1.97" | 9 | 7 | 500 | 29 |
| HCGS-9-4060-W4 | 40-60 | 1.57"-2.36" | 9 | 7 | 250 | 14 |
| HCGS-9-5070-W4 | 50-70 | 1.97"-2.76" | 9 | 7 | 250 | 16 |
| HCGS-9-6080-W4 | 60-80 | 2.36"-3.15" | 9 | 7 | 250 | 16 |
| HCGS-9-7090-W4 | 70-90 | 2.76"-3.54" | 9 | 7 | 100 | 9 |
| HCGS-9-80100-W4 | 80-100 | 3.15"-3.94" | 9 | 7 | 100 | 15 |
| HCGS-9-90110-W4 | 90-110 | 3.54"-4.33" | 9 | 7 | 100 | 9 |
| HCGS-9-100120-W4 | 100-120 | 3.94"-4.72" | 9 | 7 | 50 | 9 |
| HCGS-9-120140-W4 | 120-140 | 4.72"-5.51" | 9 | 7 | 50 | 9 |
| HCGS-9-130150-W4 | 130-150 | 5.12"-5.91" | 9 | 7 | 50 | 9 |
