Name: Standard Insulating Bushing (Pack of 100)
Brand: GTSE Fasteners
SKU: GTSE-BUSHING
Price: 8 USD
Availability: InStock

Safe Wire Passage: Provides a smooth, non-conductive surface for wires and cables.
Easy Manual Assembly: Securely snaps into place with simple fingertip pressure.
Mechanical Protection: Reduces wear and tear on cables by preventing contact with metal edges.
Chemical Resistant: Molded from industrial-grade Nylon to withstand oils and solvents.
Compact Design: Minimal protrusion for a clean, professional aesthetic on control panels.

Safe Wire Passage: Provides a smooth, non-conductive surface for wires and cables.
Easy Manual Assembly: Securely snaps into place with simple fingertip pressure.
Mechanical Protection: Reduces wear and tear on cables by preventing contact with metal edges.
Chemical Resistant: Molded from industrial-grade Nylon to withstand oils and solvents.
Compact Design: Minimal protrusion for a clean, professional aesthetic on control panels.

Safe Wire Passage: Provides a smooth, non-conductive surface for wires and cables.
Easy Manual Assembly: Securely snaps into place with simple fingertip pressure.
Mechanical Protection: Reduces wear and tear on cables by preventing contact with metal edges.
Chemical Resistant: Molded from industrial-grade Nylon to withstand oils and solvents.
Compact Design: Minimal protrusion for a clean, professional aesthetic on control panels.

This standard insulating bushing provides a smooth, rounded entry point for cables and tubing. It is designed to snap securely into place, offering a low-profile solution for protecting lines from mechanical damage and vibration during operation.

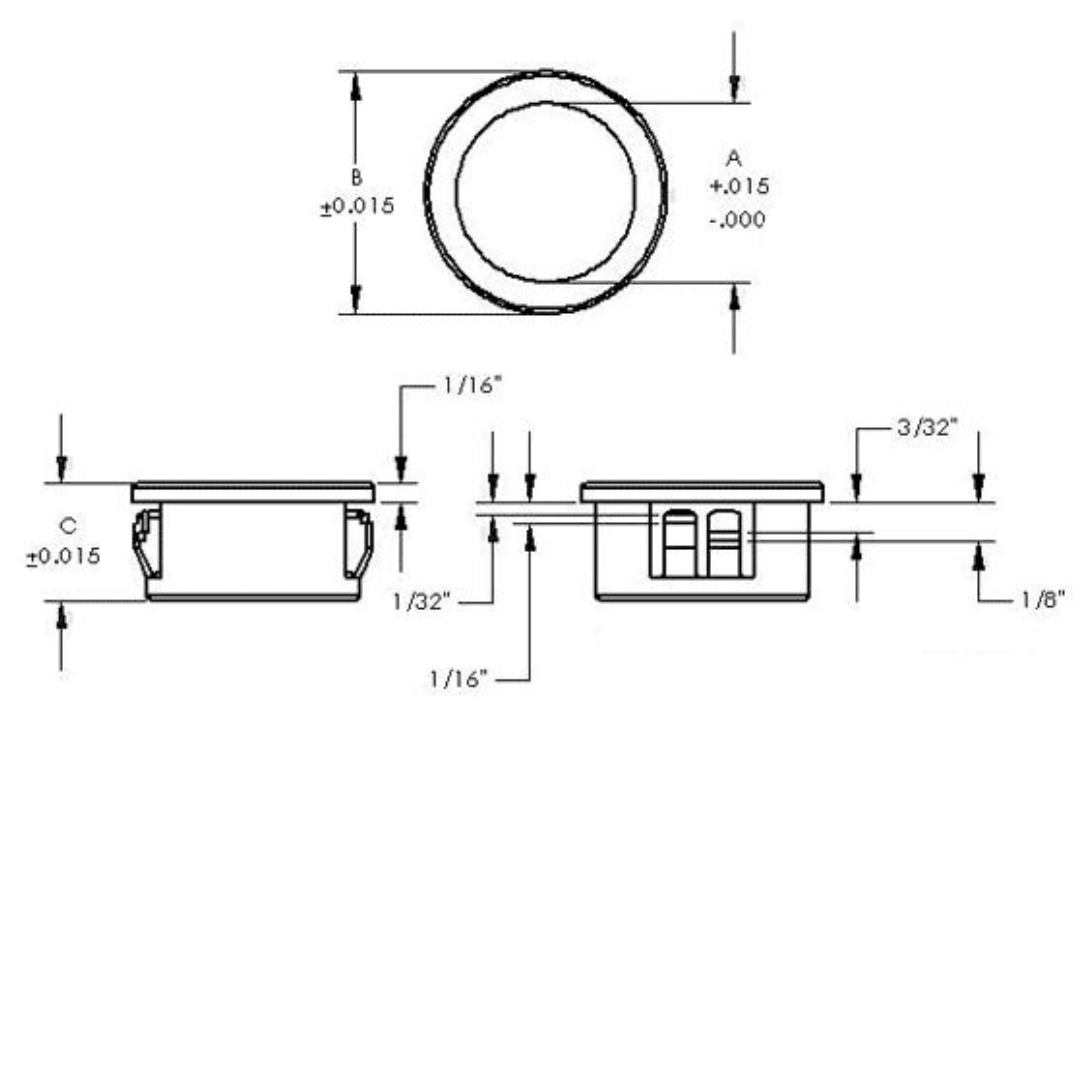

Technical Information

SKU	INSIDE DIAMETER (" / MM)		HEAD DIAMETER (" / MM)		THICKNESS (" / MM)		HOLE DIAMETER (" / MM)		MAX. THICKNESS (" / MM)
GTSE-BUSHING4375	0.312	8	0.531	13.5	0.406	10.3	0.437	11.1	0.125	3.2
GTSE-BUSHING5004	0.25	6.4	0.578	14.7	0.406	10.3	0.5	12.7	0.125	3.2
GTSE-BUSHING5006	0.375	9.5	0.578	14.7	0.406	10.3	0.5	12.7	0.125	3.2
GTSE-BUSHING6258	0.5	12.7	0.718	18.2	0.406	10.3	0.625	15.9	0.125	3.2
GTSE-BUSHING10915	0.937	23.8	1,218	30.9	0.453	11.5	1,093	27.8	0.125	3.2
