Name: IFE Black 2:1 Single Wall Heat Shrink Tubing - 6" Length - Carton Pack
SKU: HFT-152-BLA
Price: 29.7 USD
Availability: InStock

Delivery Information: Please note that this product has a 48-hour dispatch time.

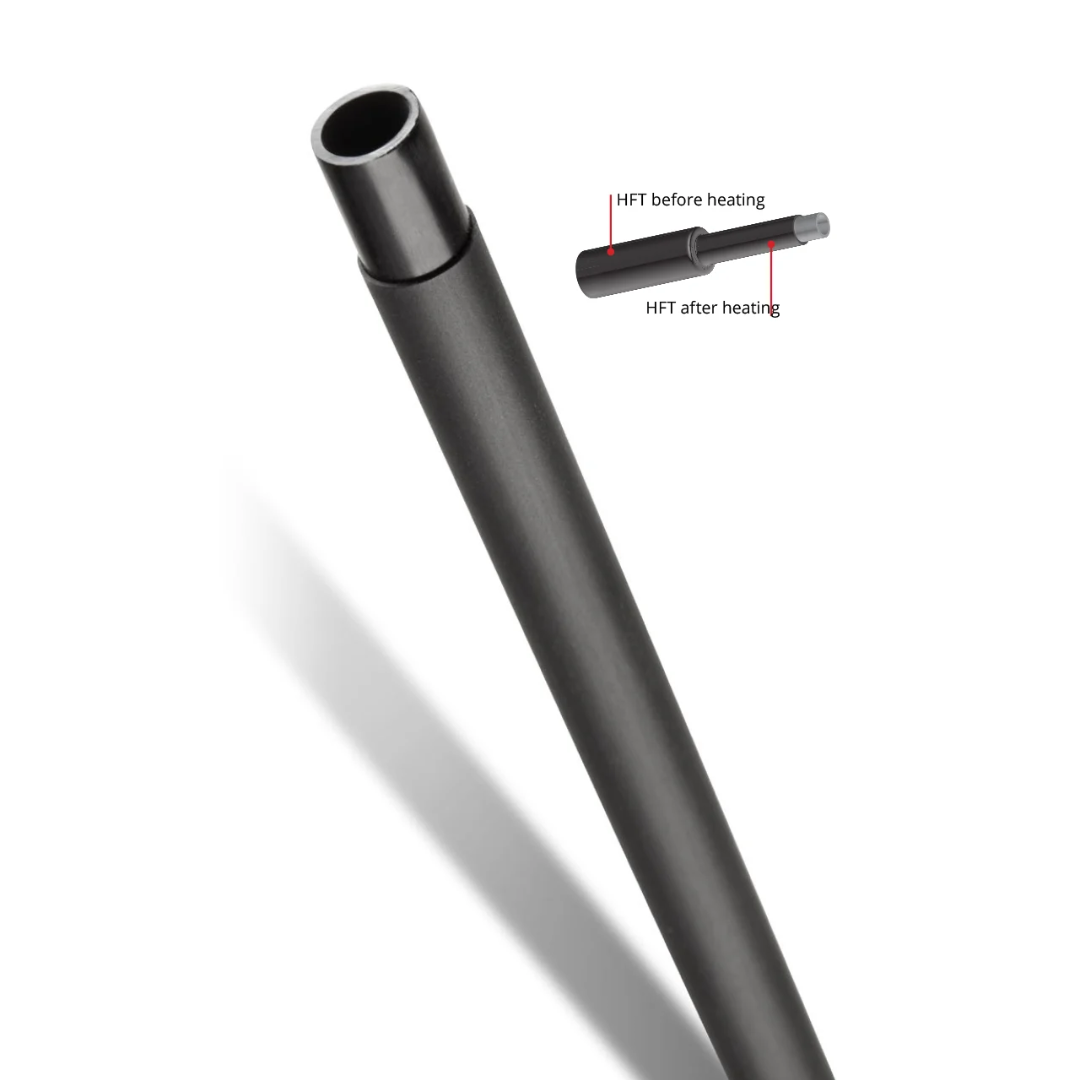

This heat-shrinkable tubing is flame-retardant, halogen-free, and easy to apply. Suitable for both fluid and electrical systems (including automotive and mass transit), it offers reliable performance and is available in a range of sizes and lengths to suit your needs.

Product Features

Flame Retardant
Halogen-free (also no lead, chromium, cadmium, or mercury)
Flexible yet durable polyolefin
Simple Installation
Cut to length
UL 600V and F mark certifications

Technical Information

Shrink Temperature	90°C (194°F)
Temperature Range	-40° to +125°C (-40° to 257°F)
Radial Shrinking Ratio	> 50%
Longitudinal Change	> 5%
Tensile Strength	> 10.4 MPa (1,508 psi)
Ultimate Elongation	> 200%
Aging in Circulating Air-Oven	158.0 + 1.0℃, 168 hours
After Aging	> 7.3 MPa (1,059)
Tensile Strength and Ultimate Elongation	> 100%
Volume Resistivity	> 1,014 W.cm
Dielectric Strength	> 15 KV/mm
Flammability	VW-1
Concentricity	>65
