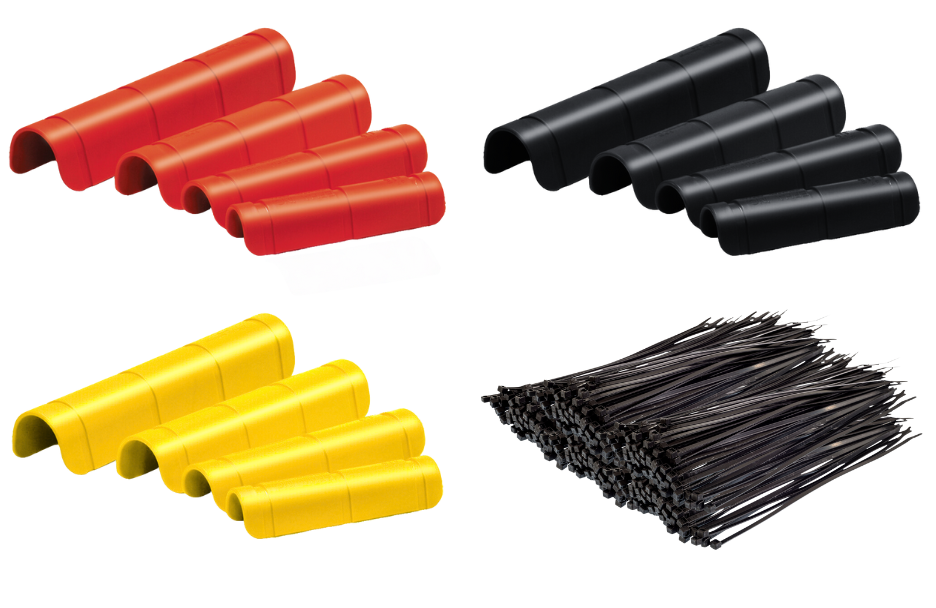

Each EPHA Hose Protector size is engineered for specific hose outer diameter (OD) ranges and requires specific cable ties for secure installation. This guide covers the recommended applications for each size.
4" Hose Protectors (HP4)
The 4" model is a popular choice among manufacturers and end users. This flexible product effectively shields electrical systems and battery cables, pneumatic lines, cables, and hydraulic systems.
- Installation: Three 8" UV black cable ties
- Recommended OD: 0.25" to 1.00"
- Wear shield: 2.50" × 4"
5" Hose Protectors (HP5)
The 5" variant offers an expanded wear surface while maintaining ease of application. Distributors and OEMs use these when replacing worn or blown hoses with new assemblies, installing protection at the exact point of abrasion during assembly.
- Installation: Two 12" UV black cable ties
- Recommended OD: 1.00" to 1.50"
- Wear shield: 3.50" × 5"
6" Hose Protectors (HP6)
The 6" protector suits medium to large size hoses, cables, water lines, and hydraulic assemblies.
- Installation: Three 12" UV black cable ties
- Recommended OD: 0.75" to 1.25" (extends to 3.50" OD)
8" Hose Protectors (HP8)
The 8" model serves the same medium to large hose range with additional length for wider coverage.
- Installation: Three 12" UV black cable ties
- Recommended OD: 1.00" to 1.50" (extends to 4.00" OD)
10" Bundle Wrap Hose Protectors (HP10)
The 10" size protects entire hose groups with a single installation, enabling bundle wrap protection.
- Installation: Four 14" UV black cable ties (120 lb strength)
- Recommended OD: 1.25" to 2.25"
12" Bundle Wrap Hose Protectors (HP12)
The 12" model provides maximum bundle coverage for large assemblies.
- Installation: Four 14" UV black cable ties (120 lb strength)
- Recommended OD: 1.50" to 2.50"
12-2" Bundle Wrap Hose Protectors (HP12-2)
The newest and widest variant protects large or complicated assemblies, hydraulic systems, and bundles of hose.
- Installation: Two 14" UV black cable ties (120 lb strength)
- Recommended OD: 1.50" to 2.50"
